TS20, 20-CH Capacitive touch sensor
with I2C
- 20-Channel capacitive touch sensor
- Auto sensitivity calibration
- Selectable output operation (single mode/ multi-mode)
- Low power consumption
- SLEEP mode for power consumption decreasing
- I2C serial interface
- Sensitivity adjustable in 16 steps
- Adjustable response time
- Optional LED ports with brightness control
- Optional tact-switch inputs
- Embedded noise elimination circuit

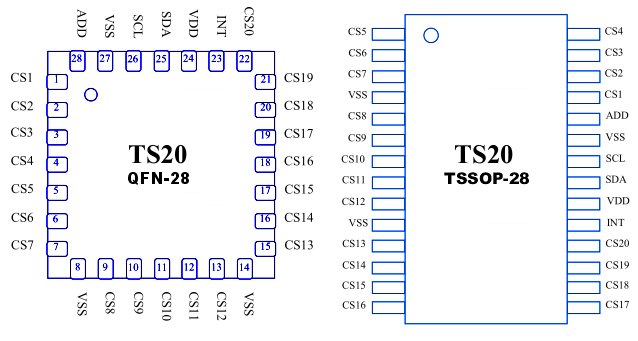

- RoHS compliant QFN-28 package and TSSOP-28
- Standard packing (QFN): reel 2500 pcs
- Standard packing (TSSOP): reel 3000 pcs

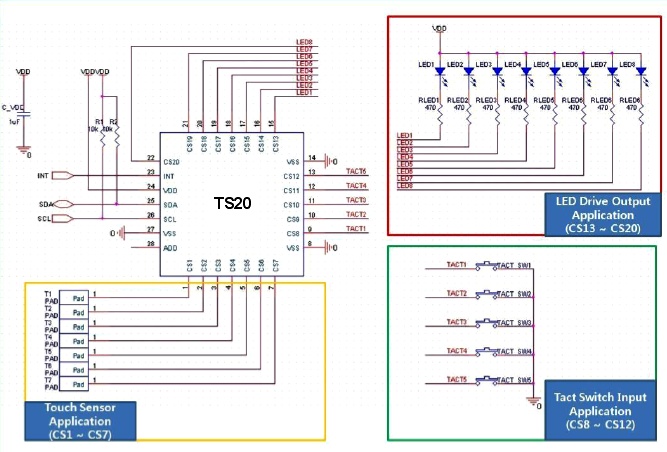

Application circuit (QFN-28 package)
